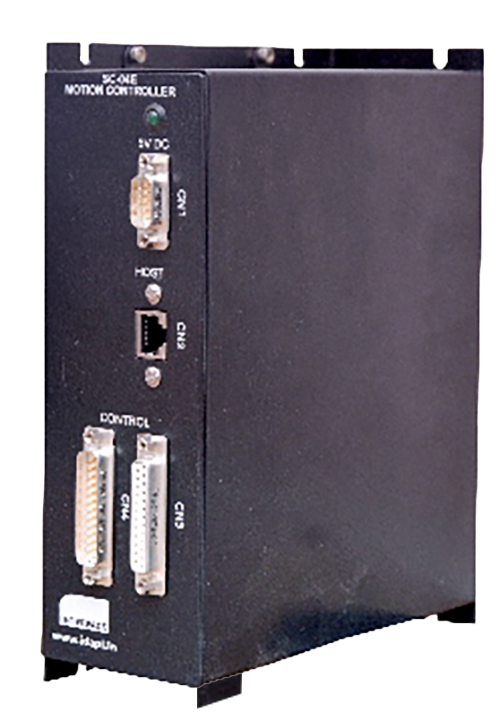

SC-04E 8 Axis Motion Controller

The SC-04E PC-based controller is the flagship controller from Interface – connecting to the Ethernet port of a standard PC/laptop, the SC-04E transforms a standard PC into a high- tech CNC machine with support upto 8 axis. Standard motion control options incl. Hand held pendant (with MPG and selector switches), Analog outputs for spindles and Closed loop control with encoder feedback.

The SC-04E has been implemented on machines for Metal 3-D printing, Incremental Sheet Forming, Dual sided Horizontal Machining Centers, etc.

The SC-04E can also be configured as a dual channel system, required in high end multi-axis machines requiring double sided machining operations.

Users can develop applications in C/C++/Python their applications integrating the SC-04E and third party DAQ systems.

Specifications:

No. of axes: Max. 8
Max. Pulse rate : 2 Mbit/sec.Expansion: Max. 4
SC-04E controllers providing max 32 axes
Expandable open architecture
100 Mbps Ethernet Interface
Motion Control output: Clock and Direction
Optoisolated Digital inputs – 16
Optoisolated Digital Outputs – 16 expandable to 32
Options:
- Closed loop control optional
- Hand Held Pendant Interface
- Analog Inputs
- Analog Outputs
Driver software – Windows (64 bit)
